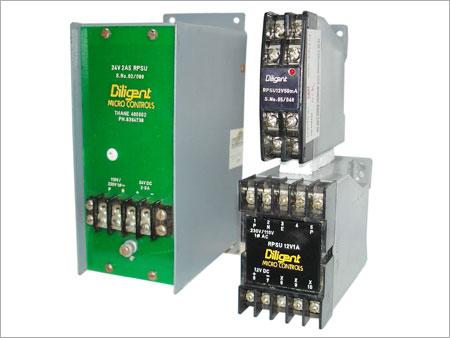

SMPS Power Supply is a widely used electronic power supply device that is widely used for switching regulator to convert electrical power. Excellent in quality and user friendly, these are applicable in broadcast system, industrial machinery, medical equipment and others. Our professionals develop these device with the best grade raw material and components with utmost accuracy. Stringent quality control and industrial standard is strictly maintained during the entire process. Quality tested before delivery and absolute in functionality. Our offered product is widely appreciated among our clients. Moreover, our valuable clients can avail this product from us in various specifications as per their requirements and at pocket friendly prices.
SMPS Power Supply Features:
1. Precisely engineered and needs less maintenance
2. Protect against irregular power supply
3. Trouble-free functionality and easy installation
4. Provided constant voltage output
5. Automatically controls the voltage level
6. Long service life with excellent performance
Here's a basic overview of how an SMPS works:
1. Rectification: The input AC voltage is first rectified to convert it into a pulsating DC voltage using diodes or a bridge rectifier.
2. Filtering: The pulsating DC voltage is then smoothed using capacitors to reduce the ripple and create a more stable DC voltage.
3. Pulse Width Modulation (PWM): The smoothed DC voltage is fed into a switching circuit that controls the voltage output by rapidly turning the power on and off. This is usually done using a transistor (such as a MOSFET) that acts as a switch. The width of the on-time (duty cycle) of the switching signal determines the output voltage.
4. Isolation (if required): In some applications, such as in power adapters, SMPSs might include an isolation stage to provide electrical isolation between the input and output for safety reasons. This is often achieved using a transformer.
5. Output Filtering: The switched output voltage is then filtered again to reduce any remaining high-frequency components and provide a clean DC voltage.
6. Voltage Regulation: Feedback loops are employed to regulate the output voltage. These loops compare the actual output voltage to a reference voltage and adjust the switching frequency or duty cycle accordingly to maintain a stable output.
Advantages of SMPS over traditional linear power supplies:
1. Efficiency: SMPS are significantly more efficient than linear power supplies. Linear power supplies dissipate excess voltage as heat, resulting in lower efficiency, especially when the input-output voltage difference is high. SMPS, on the other hand, regulate output voltage by rapidly switching the input voltage on and off, reducing energy loss as heat and thereby improving overall efficiency.
2. Size and Weight: SMPS are usually smaller and lighter than linear power supplies with equivalent power ratings. This is because SMPS operate at higher frequencies, allowing the use of smaller transformers and passive components. This size reduction is particularly advantageous in applications where space is limited.
3. Voltage Conversion Efficiency: SMPS can efficiently step up or step down voltage levels. Linear power supplies are less efficient when it comes to voltage conversion, as they need to dissipate excess voltage as heat, making them less suitable for applications that require significant voltage transformation.
4. Heat Dissipation: SMPS generate less heat compared to linear power supplies, primarily due to their higher efficiency. This reduced heat generation can lead to better reliability, longer component lifespan, and the potential for fanless designs in some cases.
5. Wider Input Voltage Range: SMPS can often operate over a wider range of input voltages without a significant impact on output performance. This is beneficial in applications where the input voltage may vary, such as in automotive or battery-operated devices.
6. Regulation and Stability: SMPS provide better output voltage regulation and stability under varying load conditions. Linear power supplies might experience larger fluctuations in output voltage when the load changes.
7. Less Energy Wasted: The higher efficiency of SMPS means they waste less energy as heat, which is environmentally friendly and can result in cost savings over time, especially in energy-intensive applications.
8. Flexibility in Design: SMPS can be designed to meet specific output voltage and current requirements more easily than linear power supplies. Their modular nature also allows for easier adaptation to different applications.
9. Reduced Electromagnetic Interference (EMI): SMPS can incorporate filtering components to suppress electromagnetic interference, making them better suited for applications where EMI needs to be minimized.
10. Higher Power Ratings: SMPS can be designed to handle higher power ratings than linear power supplies without becoming excessively large and heavy.
Q. What is an SMPS?
Ans: An SMPS, or Switched-Mode Power Supply, is an electronic power supply that efficiently converts electrical power from one form to another using high-frequency switching. It's commonly used to convert AC voltage to regulated DC voltage for various electronic devices.
Q. What are the advantages of SMPS over linear power supplies?
Ans: SMPSs are more efficient, compact, and lightweight compared to linear power supplies. They waste less energy as heat and can handle a wider input voltage range.
Q. How does an SMPS work?
Ans: An SMPS works by rapidly switching the input voltage on and off. This switching is controlled to regulate the output voltage. The process involves rectification, filtering, switching, and regulation stages.
Q. What are the different types of SMPS designs?
Ans: Common SMPS designs include flyback, forward, push-pull, half-bridge, and full-bridge. Each design is suited for different power levels and applications.
Q. Why are SMPSs used in electronic devices?
Ans: SMPSs are used because of their efficiency, which reduces energy consumption and heat generation. They're also smaller, lighter, and more versatile, making them ideal for a wide range of devices from computers to industrial equipment.
Q. Are there any drawbacks to using SMPS?
Ans: SMPSs can introduce high-frequency noise into circuits, which might require additional filtering and shielding. The complexity of their design can also make troubleshooting more challenging.
Q. How does voltage regulation work in an SMPS?
Ans: Voltage regulation in an SMPS is achieved through feedback control. A feedback loop continuously monitors the output voltage and adjusts the switching duty cycle or frequency to maintain the desired output voltage.
Q. What is the role of a transformer in some SMPS designs?
Ans: Transformers are used for isolation and voltage transformation in some SMPS designs. They allow for electrical separation between input and output and can step up or step down the voltage as needed.
Q. Are there safety considerations when designing or using SMPSs?
Ans: Yes, safety is crucial. Isolation between input and output voltages is often required. Proper grounding, insulation, and protection mechanisms must be in place to prevent electric shock and other hazards.
Q. Can SMPSs be used in high-power applications?
Ans: Yes, high-power applications often use more complex SMPS designs like push-pull, half-bridge, and full-bridge configurations. These designs allow for efficient power conversion at higher wattages.
Q. How do I choose the right SMPS for my application?
Ans: Factors to consider include the required output voltage and current, input voltage range, efficiency requirements, and any special features needed for your application.
Q. What is the efficiency range of SMPSs?
Ans: SMPSs can have efficiencies ranging from 70% to over 95%, depending on the design and load conditions. More advanced designs tend to have higher efficiency.
